Tubular heaters round section

Fields of application

Animal incubators, prenatal care. Duct heating. Epoxy curing. Catering equipment. Ovens. Liquid heating. Laboratory equipment. Preheating and welding of gaskets and platesAnimal incubators, prenatal care. Duct heating. Epoxy curing. Catering equipment. Ovens. Liquid heating. Laboratory equipment. Preheating and welding of gaskets and plates

Electric connections

Screws / Bolts / Bolts and bushingsBipolar cap / Ceramic terminal block / Cables

Power

Radiation up to 4 Watts/cm2.
Stuck inside a slot 1 to 4 Watts/cm2
Submerged in a still liquid up to 5 Watts/cm2, moving liquid up to 12 Watts/cm2. Air forced up to 7 Watts/cm2
With fins and forced air up to 10 Watts/cm2
Other powers can be manufactured, this depends on whether the system can absorb the heat generated

Ejemplos

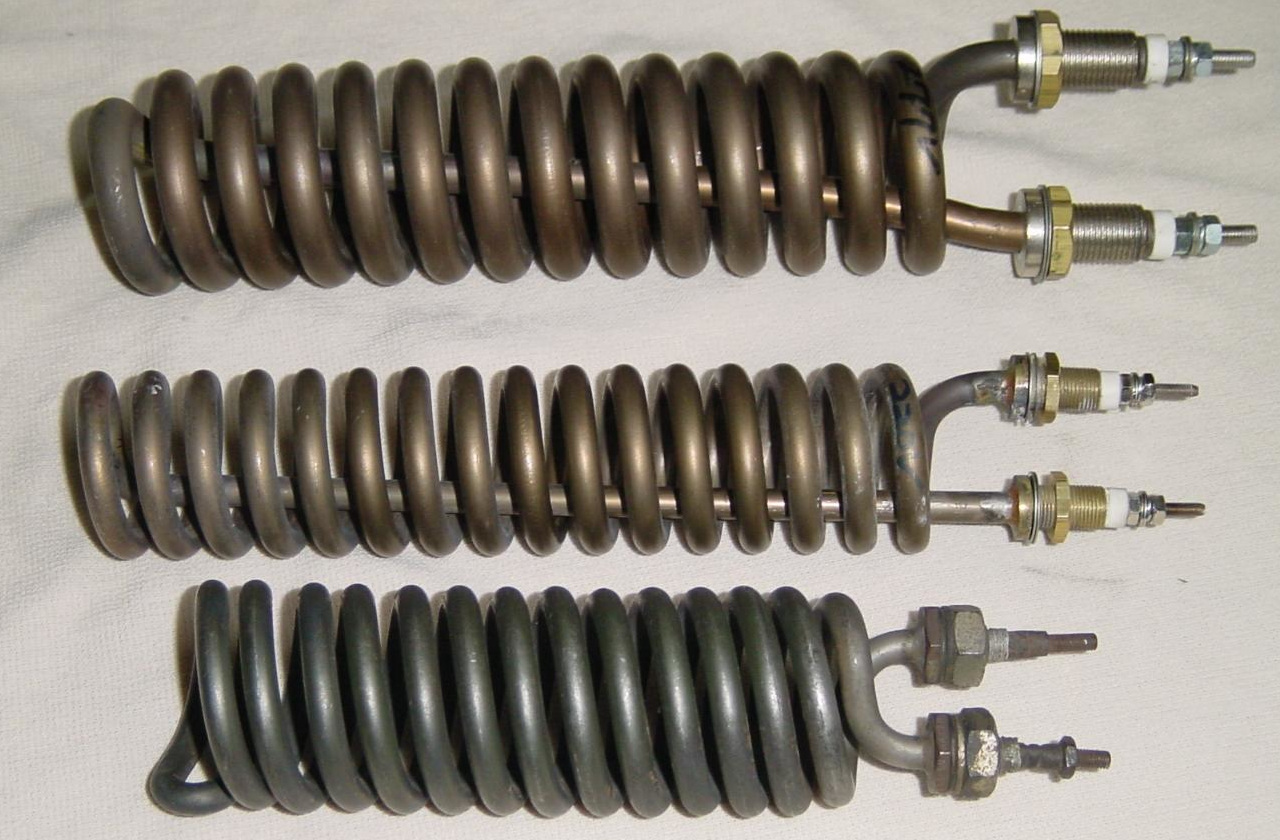

Coiled tubular heaters

Heating of air in confined spaces.
Heating of the inside of pipes-
Heating of liquids in constant motion

Finned tubular heaters
Zinc platted iron or 316 stainless steel

Specialy designed to maximize heat transfer rate.
Zinc platted iron is the standard up to 180°C
AISI 36 Stainless steel or greater temperatures, use in medical laboratories and food industries

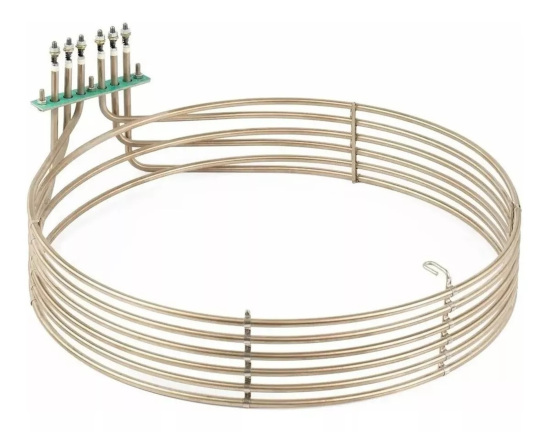

Tubular heaters for bread and pastry ovens

Special designs for the bread ovens, are manufacures with drawing parameters o copying samples

Duct heaters

Heating air conditioning ducts
Heating tunnels for cooking food
Explosion proof configurations

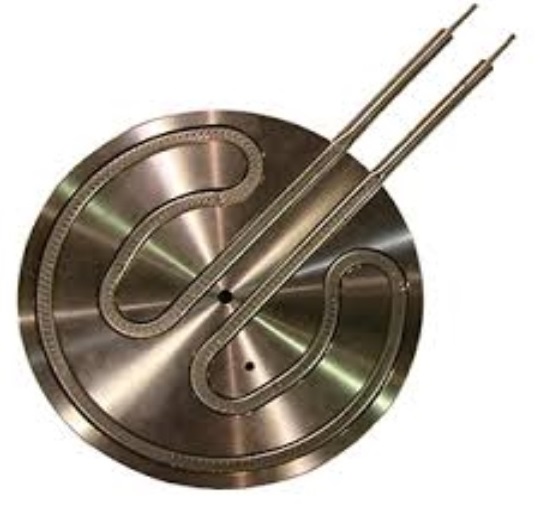

Tubular heater stamped in mold

This instalation method gives a superior termperature transmission rate:
Also the replacement of burned units is very easy

Confort air heaters

Fans mounted with bearings.
Stainless steel tubular heaters with the option of zinc plated iron or AISI 316 stainless steel fins.
Cabinet lined with stainless steel sheet.
Standard legs and optional with wheels
Regulation and safety thermostat.
Thermomagnetic key and 4 phole relayr.
Includes 4-conductor workshop-type four-pole cable. Single-phase, three-phase configurations with or without neutral.
Powers from 6 Kw to 1500 Kw

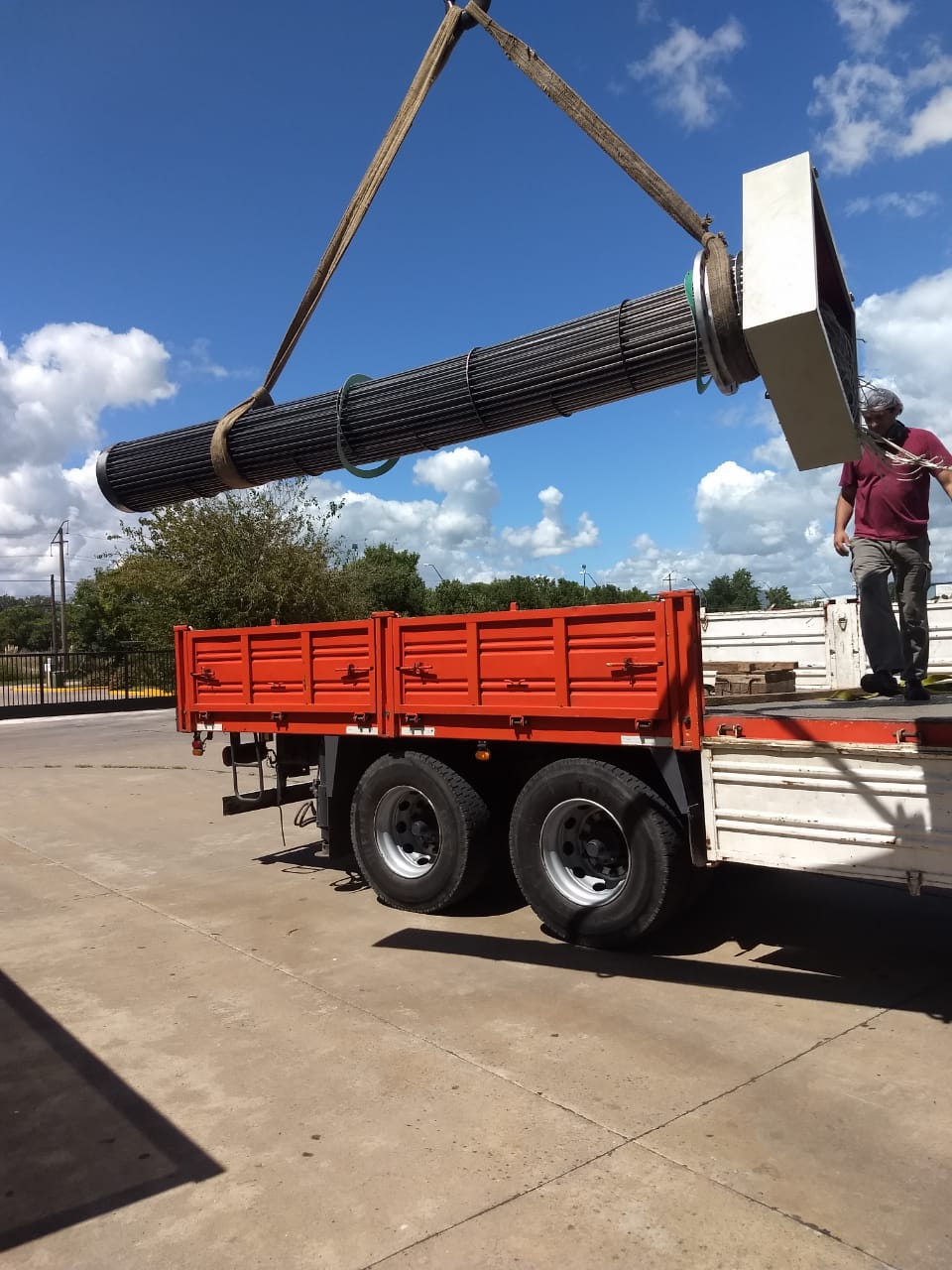

Ultra high power flanged air heater

4 Meters length
4 stages 450 Kw
96 stainless steel AISI316 elements
5 flow deflectors for intensive exchange of generated heat Longitudinal tensioners to maintain the shape
Mirror flange at the other end for maximum rigidity Generating large quantities of hot air
Cracking the air to obtain gases such as nitrogen, oxygen and noble gases, very useful in the petrochemical industry
Heating fuid liquid, such as water, oil, diesel
