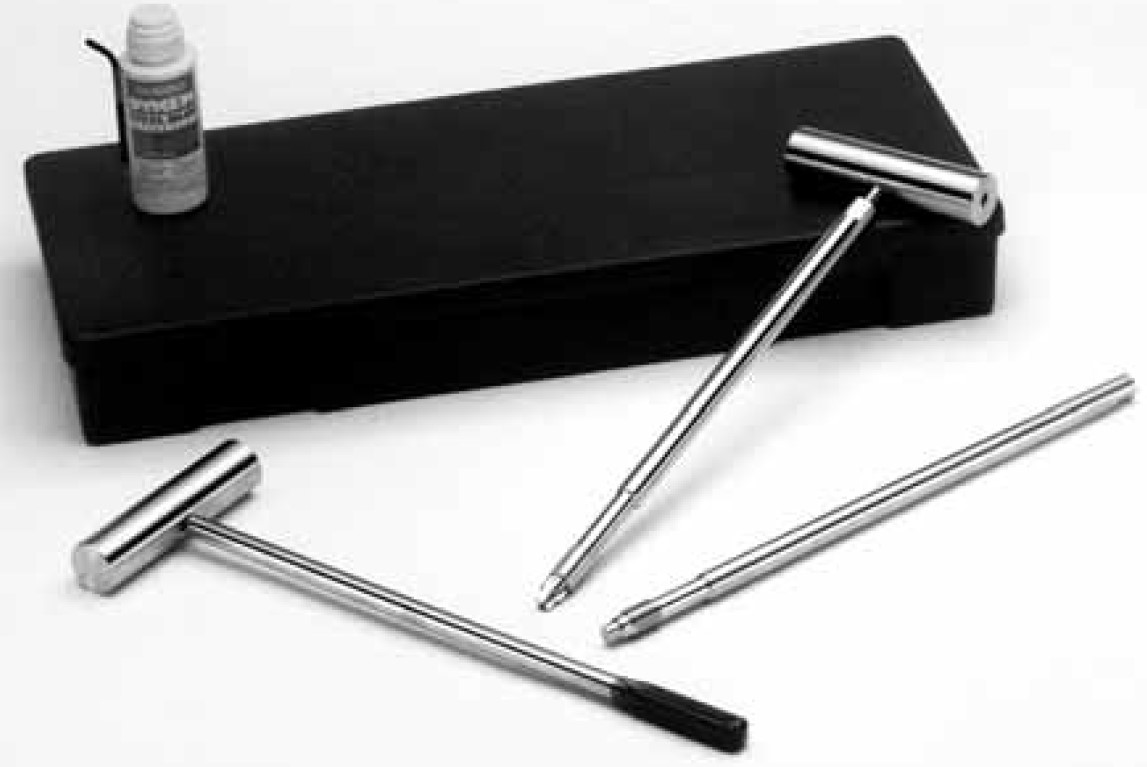

Cleaning tool kit

The cleaning tool kit was designed by Dynisco for use in removing excess plastic from mounting holes for pressure and temperature transducers. Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451 " hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned.
M 10 and M 18 cleaning kits also available.

Dynisco herramientas para hacer alojamientos

Mounting hole machining kit

The transducer Mounting Hole Machining Tool Kit contains all necessary drills and taps to prepare a standard 1/2-20 UNF 1/2-20 UNF transducer mounting hole. The kit contains the special pilot drill required to machine the 45° seat. All tools included in this kit are made of premium grade strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. Consult Dynisco for additional information.
M10 and M18 machining kits are also available.

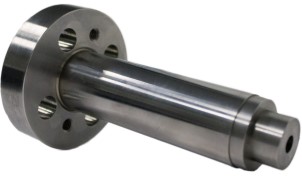

Button seal process adapter

The Button Seal Process Adapter is a sensor accessory that allows for the installation of a 1/2-20 UNF (Unified National Fine thread) melt pressure sensor into a button seal style process mounting port. The sensor can be supplied by Dynisco or any other manufacturer.

Dynisco connectors

Mating connectors are used with Dynisco transducer models: PT460E, PT460XL, PT4624, PT100 Series, PT462E, PT462XL, PT4625, PT465XL, TPT463E, TPT463XL, PT4626, FT444DH, PT467E, PT467XL, TPT4634, FT446H, TPT4635, FT446HM, TPT4636, PT4674, PT4675, PT4676, EPR Series, MRT Series, DYN-X, DYN-X-TC, IPX/PX18X

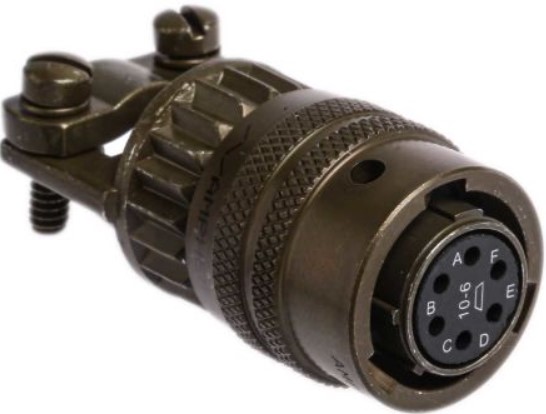

6 - pin connector # 711600
8 - pin connector # 710700
6 pin panel mount # 711160
8 pin panel mount # 710180

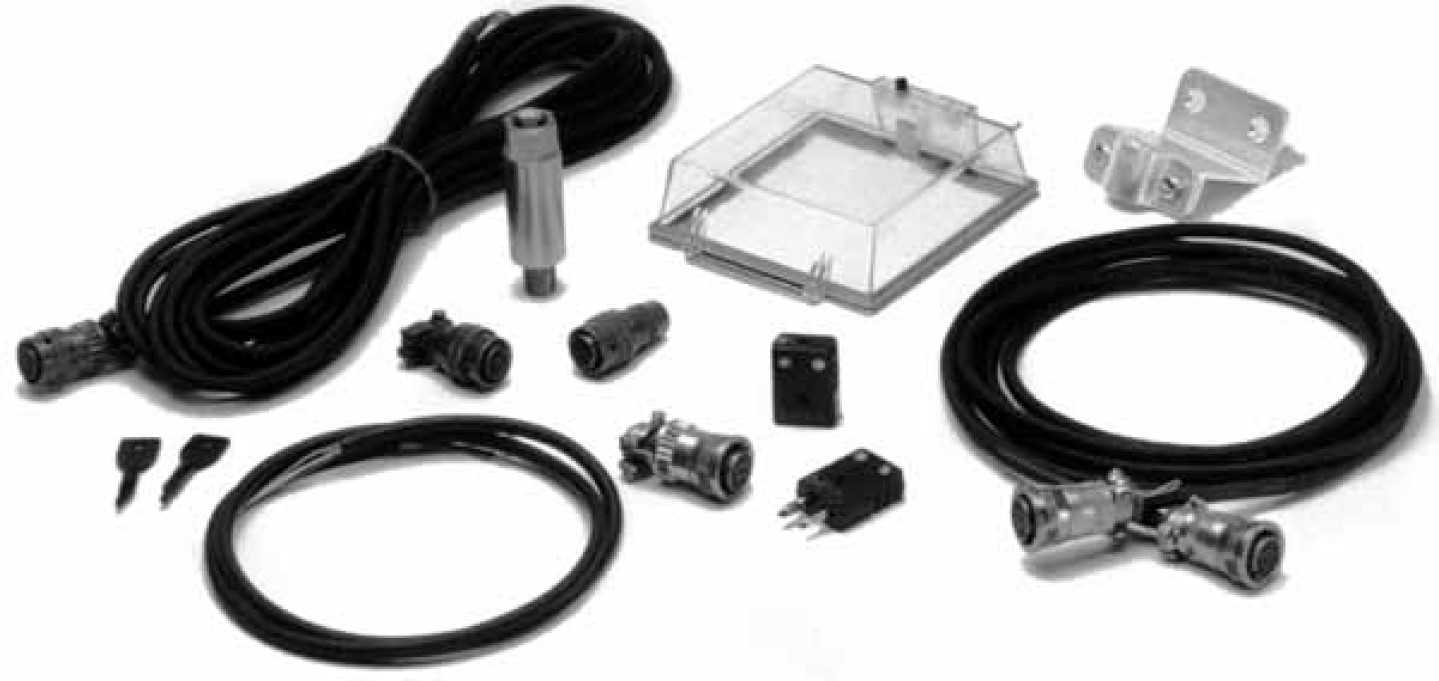

Dynisco cables

Cables with 6 pin connector 3 meters length # 929008
Cables with 6 pin connector 6 meters length # 929020
Cables with 6 pin connector 12 meters length # 929022

Cable with 8 pin connector 6 meters length # 929010

Ask for other configurations and lengths
