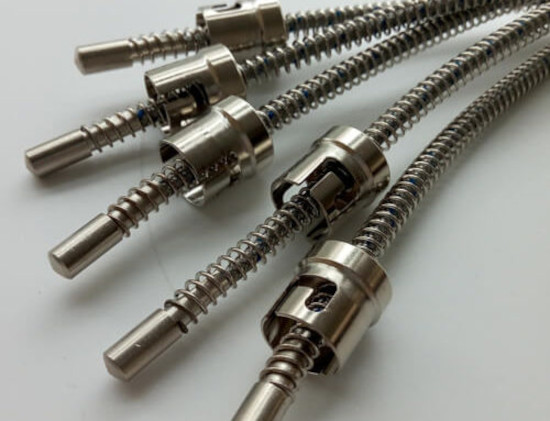

Bayonet coupling

Thermocouple and RTD termoresistances cound have a rapid bayonet coupling
Common measures:
 - Small - inner Ø 12mm sensor tip Ø 5 & 6mm
 - Large - inner Ø 14mm sensor tip Ø 8mm
 - XL extra large - inner Ø 16mm sensor tip > 8mm

Available for all thermocouples types and for PT-100 and PT-1000

Aluminum head KSE / KNE / KNC

KSE - Aluminum die casting head.
          Threaded tap diameter 58mm

KNE - Aluminum die casting head.
          Threaded tap diameter 81mm
          Steatite block 40mm
          Can fit 4-20mA transmitter

KNC - Aluminum die casting head
           Threaded tap diameter 82mm
           Steatite block 36mm
           Can fit 4-20mA transmitter

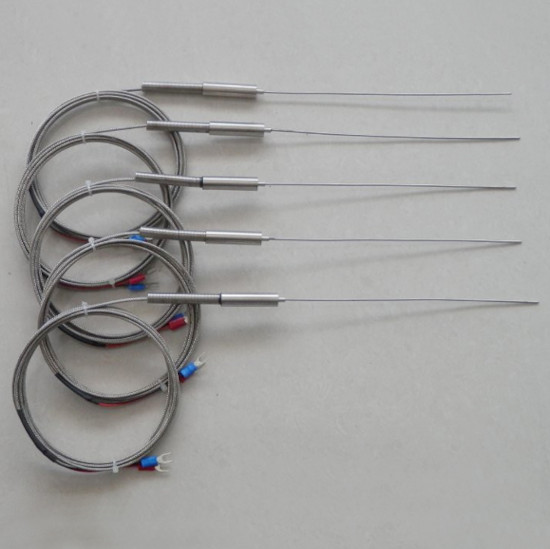

MI Thermocouples

"J" type standard made with stainless steel AISI316
Diameters 0,5mm to 8mm
Cable exit 2 meters with Mylar®

"K" type standard made with Inconel 600
Diameters 1.0mm / 1.5mm / 2.0mm / 2.5mm / 3.0mmÇ, la vaina standard es Inconel por su resistencia a las altas
Insolated joint
Cable exit 2 meters Mylar®
Single or double
Diameters up to 8mm
Length up to 30 meters

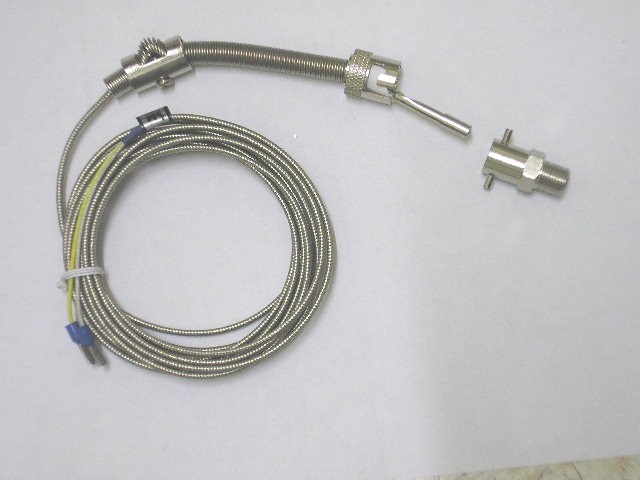

Chinesse model bayonet coupling

This bayonet cupling with inner diameter 11mm, have an extra tube with a screw for the regulation

It is for replacement on machines made in China

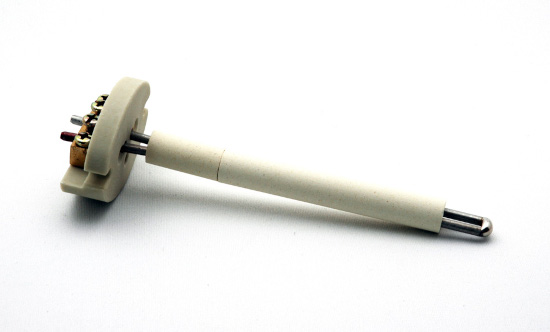

Furnace thermocouples

Manufactured with large diameter of compensated wires
Steatite tubes for protection
Ceramic blk for the cable connection

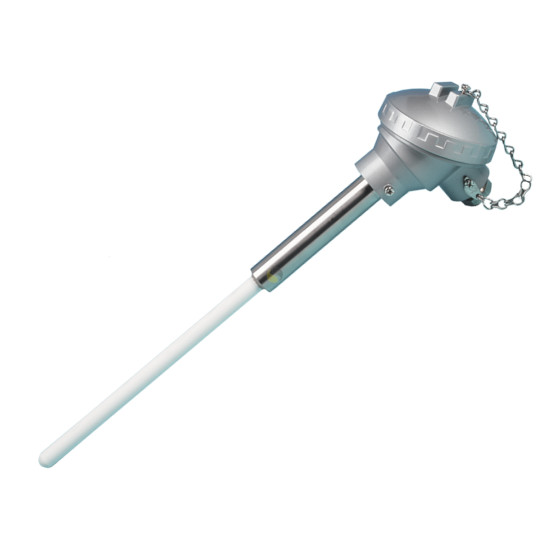

Could be installed alone or covered with silimanite tubes

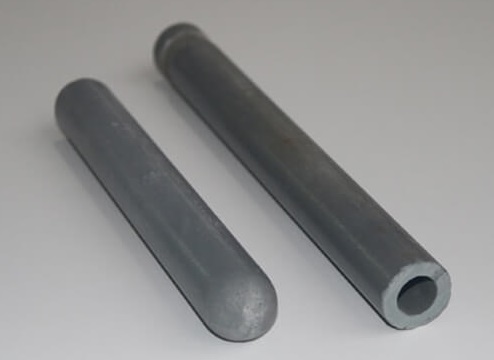

NSIC protection tubes

Ultra high temperatures up to 1500°C
Silicium carbide content greater than 68%
Density 2.85 g/cm³
Rupture module 180 MPa at 1300°C
The optimasl choise for no ferrous melting temperatures

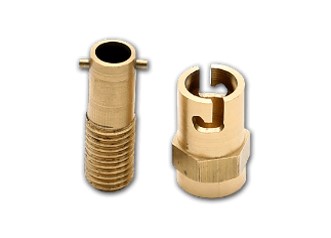

Bronze parts for coupling

CNC parts made with standard and special measures
Cover all requirements for the thermocouple sensing in all machines

Hot-Runner thermocouples

One of the most used models for correct sensing of temperature in hot-runner manifold systems

3/8"W Thermocouple for barrel

Standard thermocouple process connection in injection and extrusion machines
Another measures are M8, M10, M12, 1/4"BSP

Melt thermocouple from Dynisco

Sensor extends into process
Type J thermocouple output
1/2 - 20 UNF mounting
 0 to 480°C range
Flush to 1" immersion lengths
Better measurement Standard output
Fits in standard thermowell
Wide range of measurements Immersion lengths
