Melt temperature measurements
Our melt temperature measurement devices are designed to measure temperature in melt stream for the Extrusion and Polymer Processing Industries.
Dynisco offers the ability to measure the depth of immersion of the junction into the hot melt stream. Dynisco has the solution for you.
Process connections
Standard 1/2 x 20 UNF
Others:
M18 x 1.5 / M14 x 1.5 / G3 / M10
M16, 1/2 BSP, 1/2 NPT, G2, G2T, G4, G3T, JRT

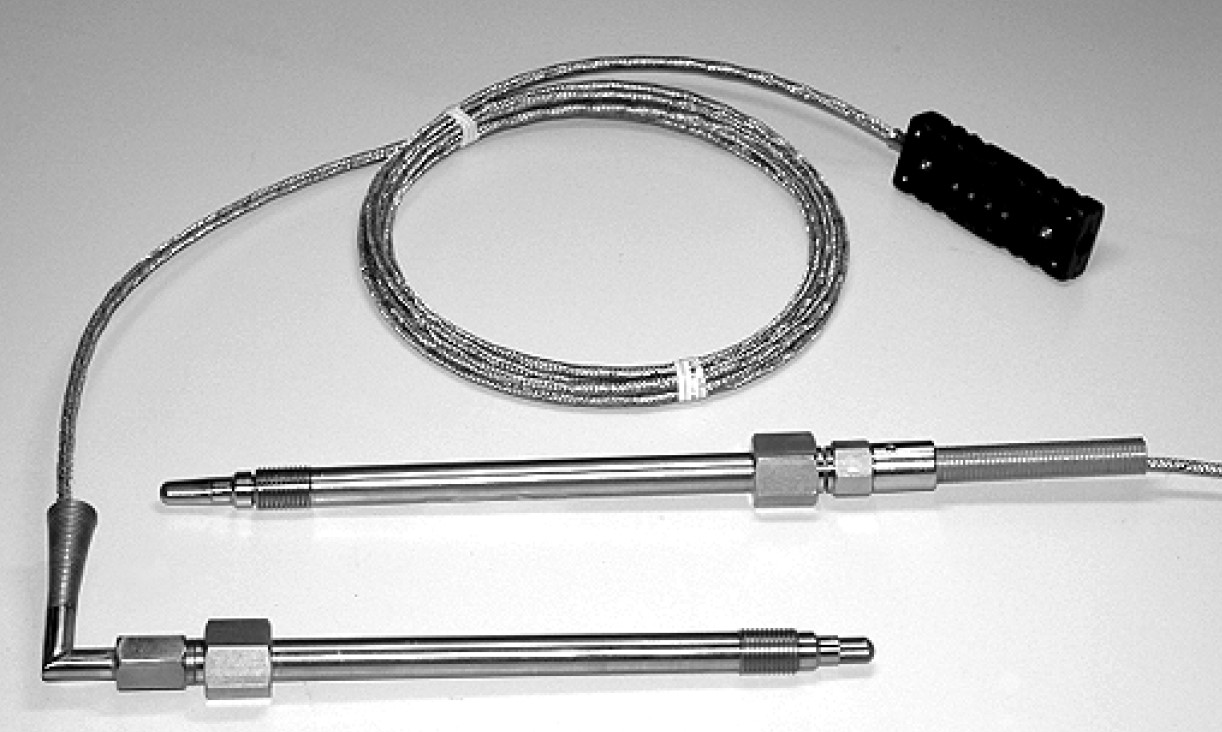

DYMT melt thermocouple
Rugged designed especially for the polymer industry
1000 bars max. pressure
Various TC and RTD
Flush or blade style
Blade can be positioned in flow direction
Various threads available
DYNISCO pressure transducer mounting hole compatible

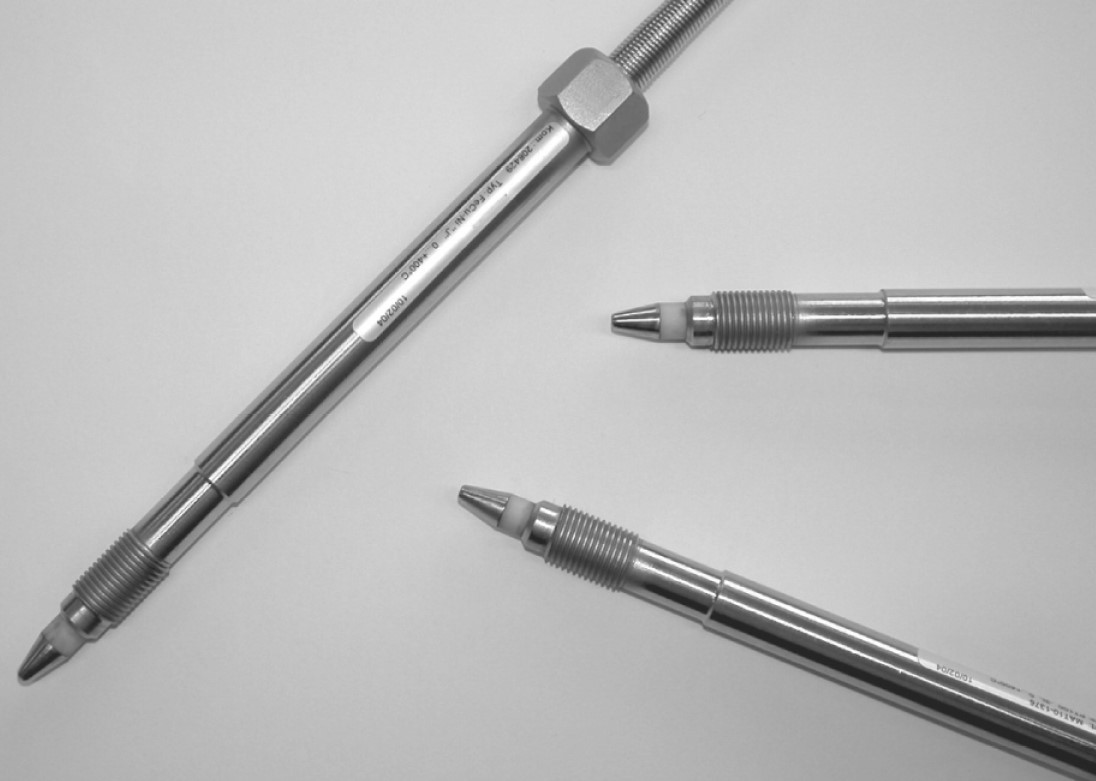

DYKE melt thermocouple
Designed especially for the polymer industry
1000 bars max. pressure
Various TC and RTD
Various threads available
DYNISCO pressure transducer mounting hole compatible
Electrical connection: DIN connector (PT100) or 2- wire

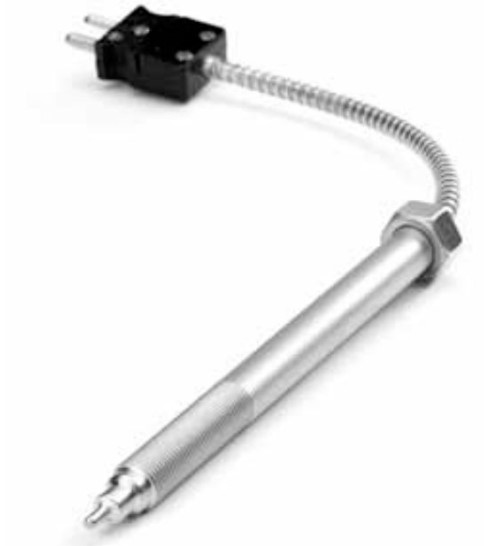

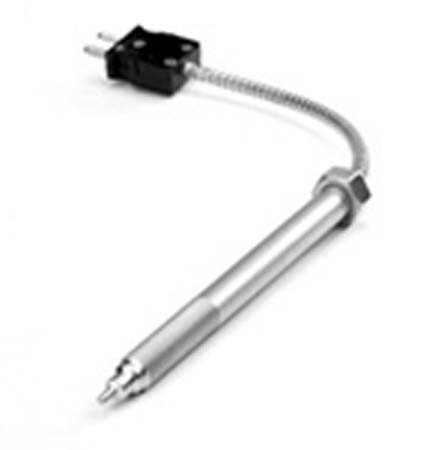

TB422J melt thermcouple
Sensor extends into process
Type J thermocouple output
1/2 - 20 UNF mounting
0 to 482°C range
Flush to 1" immersion lengths
Better measurement
Standard output
Fits in standard thermowell
Wide range of measurements
Immersion lengths to match applications
