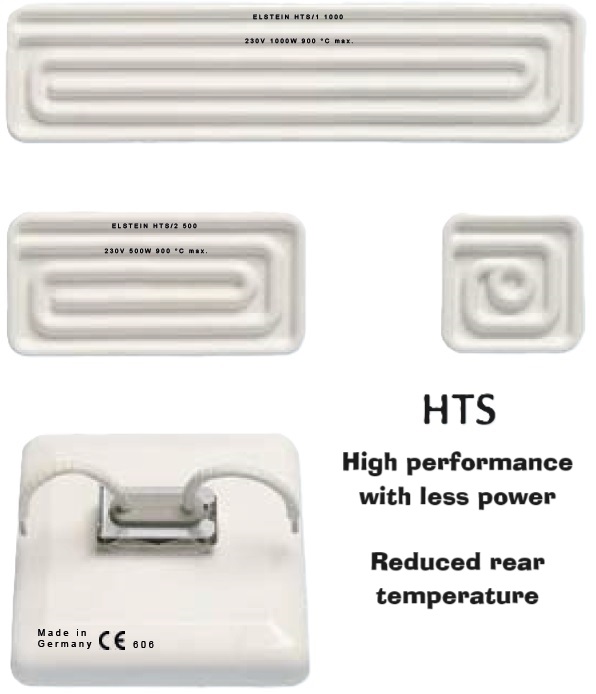

HTS the new standard

Elstein HTS high temperature radiators are ceramic infrared panel radiators, which can be used for operating temperatures up to 860 °C and surface ratings up to 64 kW/m².
HTS series radiators are produced using a hollowcasting ceramic process and are filled with thermal insulation material. This improves the radiant power output to the material to be heated.
Furthermore, there is a significant reduction in heat dissipated in the wiring space, so that additional insulation of the heating area is usually not required.
Compared with IR radiators, which are produced using full-poured casting processes, HTS radiators have a considerably reduced heat-up time and, depending on the type of application, enable energy savings of up to 25 %. Elstein HTS high temperature radiators are available in four designs and cover the power range from 60 W to 1000 W.

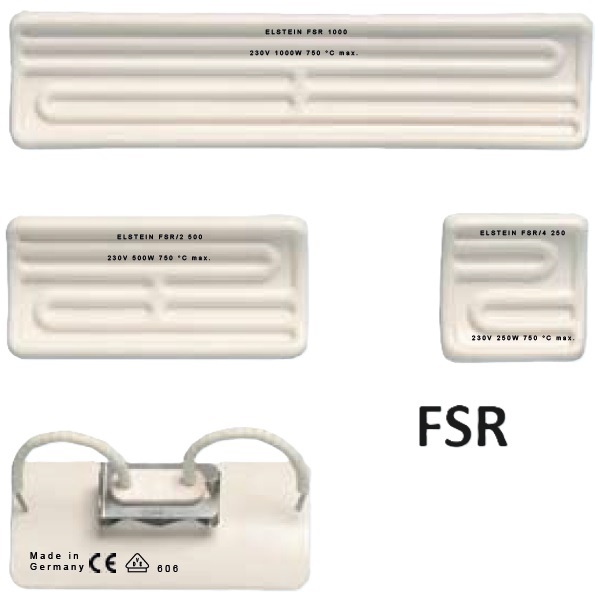

FSR classic model

Elstein FSR panel heaters are ceramic infrared heaters, which are designed for operating temperatures up to 720 °C. Surface ratings of up to 64 kW/m² can be installed.
FSR series heaters are made using a full-pour casting ceramic process and are characterised by their concavedesign.
Due to the design of this type, there is a space between the heater and mounting plate, which reduces the heat absorbed by the wiring space.
FSR panel heaters can be used universally and are suitable for assembling radiation areas with any geometry required. They are available in three designs and cover the power range from 60 W to 1000 W.
With its FSR panel heaters, the company Elstein has been setting design, type, power and quality standards, recognised worldwide since 1952 for ceramic infrared panel heaters.

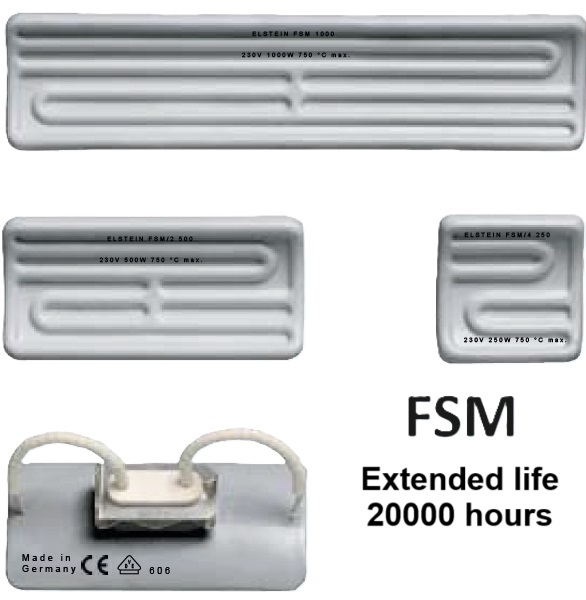

FSM MaxLife units

Elstein MaxLife FSM panel heaters are ceramic infrared heaters, which are designed for operating temperatures up to 720 °C. Surface ratings of up to 64 kW/m²
The durability of MaxLife panel heaters FSM has been maximized.
Thus they are usable for 35000 hours and more when operated correctly and under normal conditions.
Due to this significantly longer service life of MaxLife heaters the cost for heater exchange is reduced.
A guarantee of operation about 20 000 hours or three years beginning from the manufacturing date exists for heaters of the FSM series with 230 V on the basis of correct heater use and normal operating conditions. Elstein MaxLife panel heaters FSM are available in three designs and cover the power range from 60 W to 1000 W.

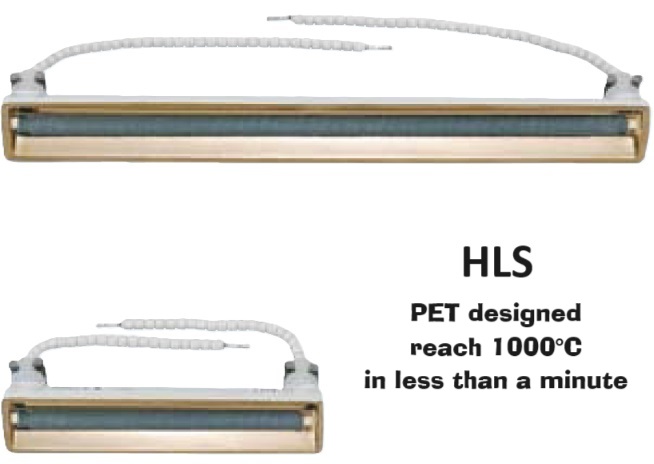

HLS series rod heater

Elstein HLS high performance heaters are ceramic infrared rod heaters, which can be used for operating temperatures up to 1000 °C and surface ratings up to 87 kW/m².
HLS series heaters have a gold-plated ceramic parabolic reflector and transfer up to 80% of the energy supplied as infrared radiation to the material to be heated.
In this way, HLS heaters allow material temperatures of up to 700 °C or high throughput speeds.
The typical operating temperature of 1000 °C is reached in less than one minute.

IOT infrared emitter E27

Elstein IOT/75 and IOT/90 heaters are ceramic infrared heaters with E27 screw caps.
The standardised E27 thread allows easy and safe installation, as the heaters can be screwed in like bulbs into porcelain sockets or metal sockets with porcelain insert. Due to their simple connection, IOT/75 and IOT/90 infrared heaters are suitable both for individual operation and for configuring groups of heaters.
They have diverse applications, in particular they range over terrariums/pets and livestock, breeding, medical and catering technology.
The power can be adjusted by using a proprietary dimmer. Elstein IOT/75 and IOT/90 heaters are available in two power levels of 60 W and 100 W or rather 150 W and 250 W.

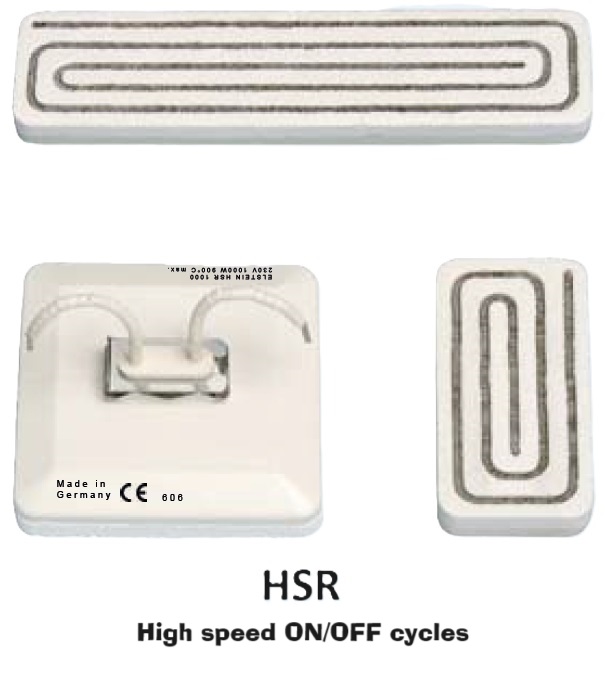

HSR series

Elstein HSR high speed heaters are quick-reaction ceramic infrared panel heaters, designed for operating temperatures up to 860 °C and surface ratings up to 64 kW/m².
The external characteristics of the HSR heaters is their visible heating coil, which is installed in a ceramic body. This design shortens the heating up and cooling down time up to 65 % as well as a reduced heat transfer to the wiring space.
HSR high speed heaters are particularly suitable for use in clocked production processes, for frequent tool changes or if the temperature has to drop quickly in case of transfer disruptions, in order to prevent damage to the production plant.
