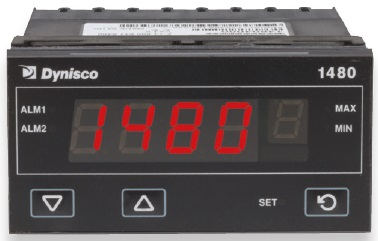

1480 - 4 digit indicator

Universal Input: Strain Gauge / Voltage / Current / Thermocouple / RTD
Min/max Value Hold
2 Alarm Outputs
Retransmission

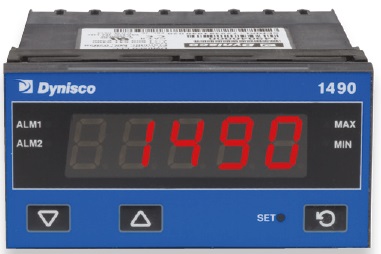

1490 - 5 digit indicator

Universal Input
2 Alarm Outputs
Retransmission
Min/max Value Hold
Modbus Communications
Transmitter Power supply
Main supply 110/240Vac or 20/48Vcc

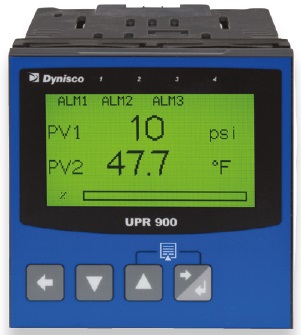

Indicator UPR900
96x96 double line display

Graphical/text LCD Display with color change
LED backlight on alarm (red/green)
Standard graphical trend view of process, alarms & events Easy to use Setup Wizard
USB port option for access to configuration and log files Data logging option logs process values, set points and alarms to .csv file for use with spreadsheets
Modbus RS-485 and Modbus TCP Ethernet supported BlueControl configuration and commissioning software Display pressure, temperature, or even differential pressure Optional second input/output in only a single instrument Analog retransmission of process variable allows signal to be sent to other devices
Configure locally or remotely by optional Modbus RTU

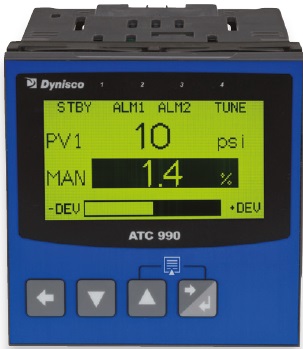

Advanced controller ATC990

Auto-tuning control in a discrete 1/4 DIN package Graphical/text LCD Display with color change
LED backlight on alarm (red/green)
Standard graphical trend view of process, alarms & events Easy to use Setup Wizard
Single loop control Display and control of differential pressure is available
USB port option for access to configuration and log files Data logging option logs process values, set points and alarms to .csv file for use with spreadsheets
Modbus RS-485 and Modbus TCP Ethernet supported BlueControl configuration and commissioning software option

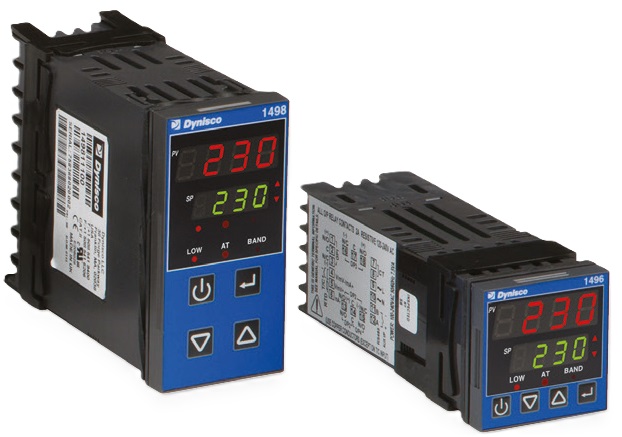

Temperature controller 1496/1498

Fast configuration to match specific settings and default parameters of the extruder
Single device for heat control-only, heat/cool control
Universal input Selectable controller or indicator modes Heat only or heat/cool control type
Process & loop alarms
Available in 1/16 & 1/8 DIN formats
Modbus RS485 communications
Ramping setpoint
Three alarm settings are standard and can be used for process high, process low, SP deviation, band, logical OR / AND, loop alarm for process control security
