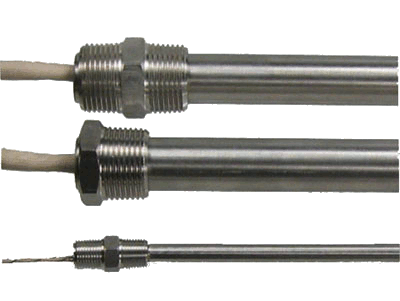

High density cartridges with treaded head TIG welded

Heating liquids in small containers
Calentamiento de líquidos en espacios reducidos
Steam generators for facial treatment
Heating in dialysis machines

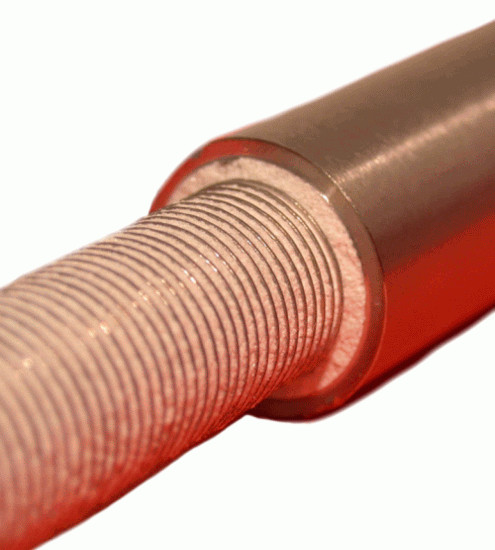

Coil detail magnified 10x

High density cartridge Ø 6.35mm turned in a lathe to show the pure magnesium oxide core with its Nicron 80/20 winding

The image was magnified ten times (10x) to be able to appreciate the 2:1 pitch winding and the 0.70mm insulating high purity magnesium oxide (MgO) wall

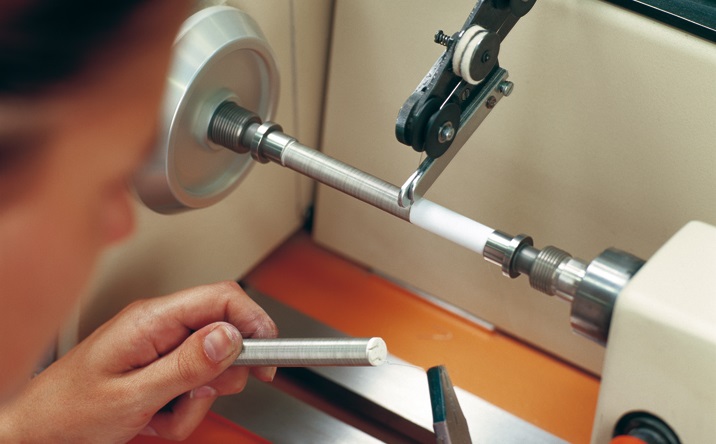

Cartridge coiling machine

Magnesium Oxide Core Winding Machine.
The PLC has built-in software specially designed to calculate the resistive value, and generate an ideal 2:1 pitch This maximize the heat transmission rate generated.

Compactada núcleos Oxido de Magnesio MgO

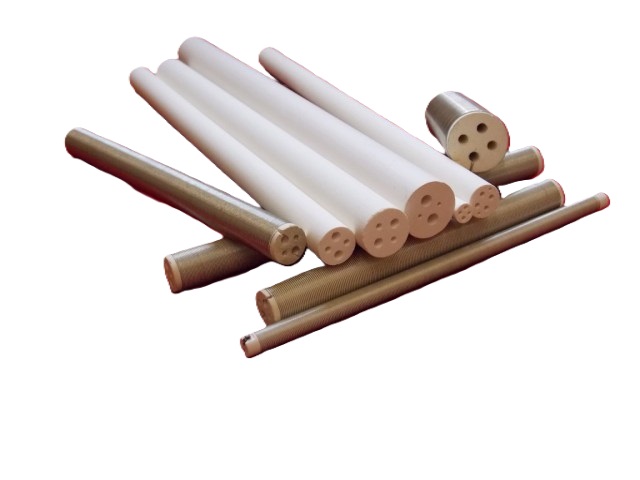

99.9% Pure magnesium Oxide MgO

Pure magnesium oxide cores are processed by extrusion through tempered stainless steel dies.
They are placed in containers for natural drying in a controlled humidity and temperature environment and then sintered at 1300°C.
They are then reground with special machines that ensure a perfect surface free of contaminants.
