Hot Runner Systems Tubular heaters & thermocouples

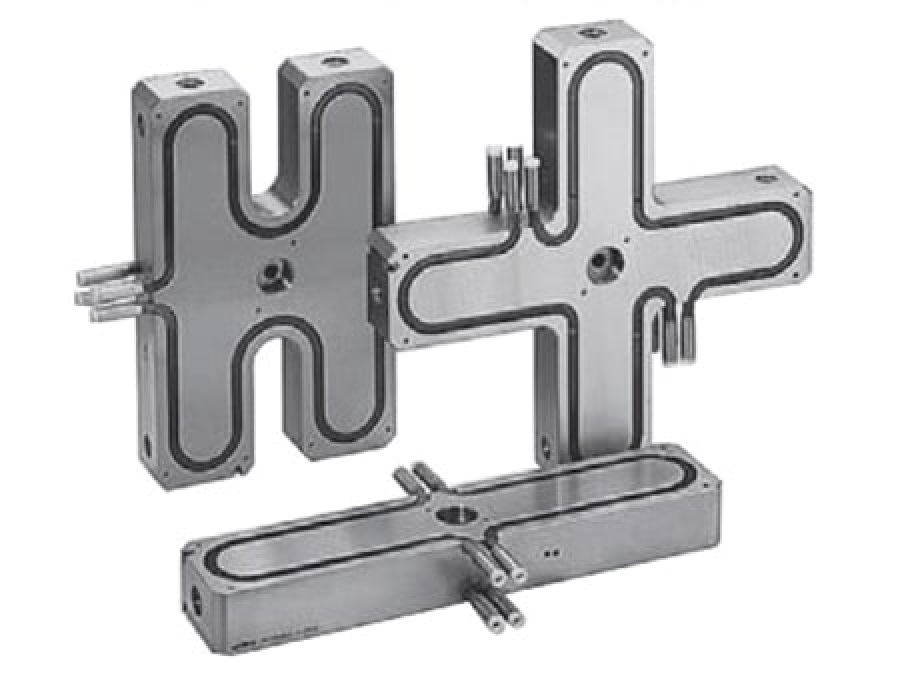

Manifold heaters
Square 6.1mm x 6.1mm
Round with different diameters:
7.0 / 7.5 / 8.0 / 9.0 / 9.52 / 10.0
Ask for other measures
Hot Coil 2.2 x 4.2mm with J thermocouple
ectas desde 150mm hasta 2000mm
Cilindradas a pedido en el momento
Special Thermocouples

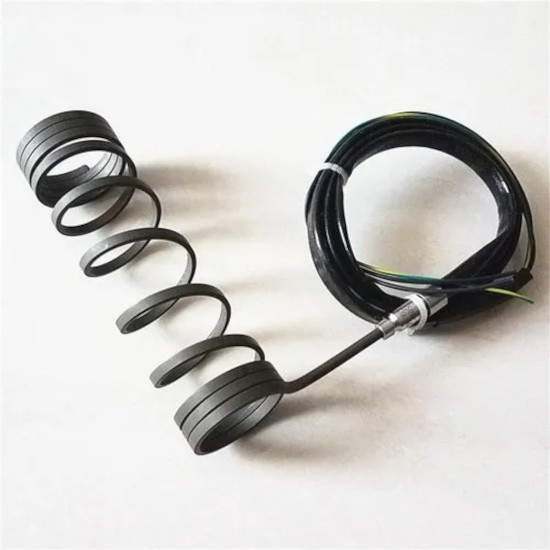

Hot Coil heaters with J thermocouple
Thickness 2,2mm x 4,2 mm width
Length between 150mm up to 2 meters
Straigth or coiled to client measures

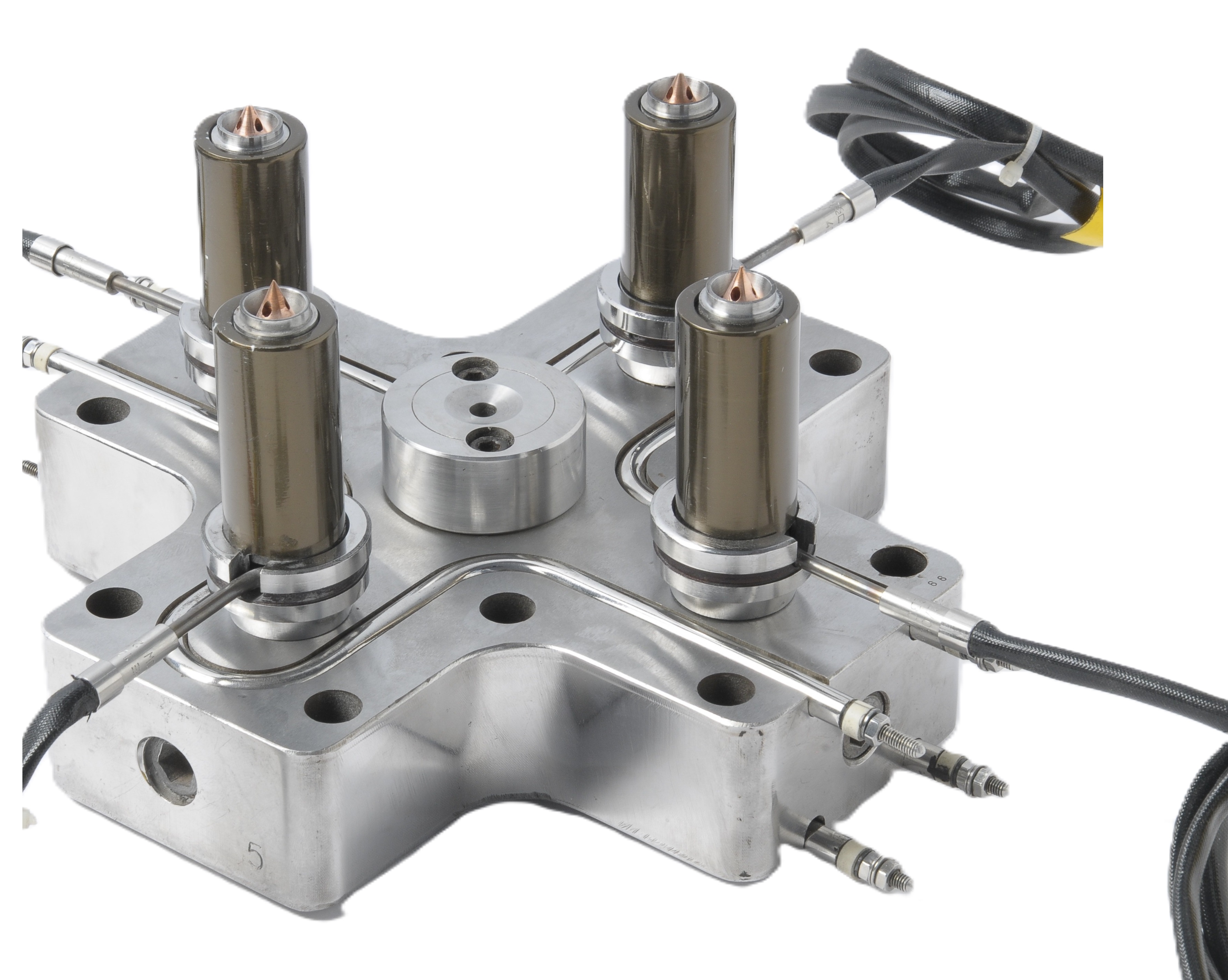

Tubular heaters
Square 6.1 x 6.1mm
Round diameters 7.0 / 75 / 8.0 / 8.6 / 9.0 / 9.52
With an aditional cost, we install the heaters in your mold, is neccesary 45° x 0.5mm chanfer to avoid damages in the heater

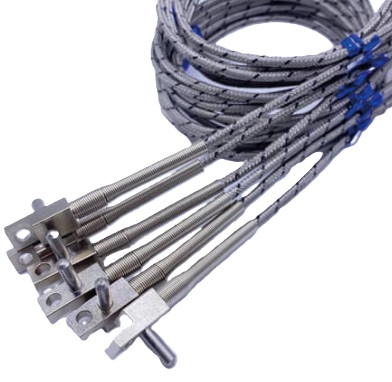

Thermocouples J
Classic model in the photo
The most classic model is hammer type.
It has a Ø4mm tube with a length of 15mm that is placed in an equidistant distance of tubulas heaters .
Its design and form of fastening make it simple to place and remove, while ensuring with the inertia of its mass that the temperature does not fluctuate with the heating ON/OFF cycles.
Another cheaper and widely used variant is the Eyelet type thermocouple.
