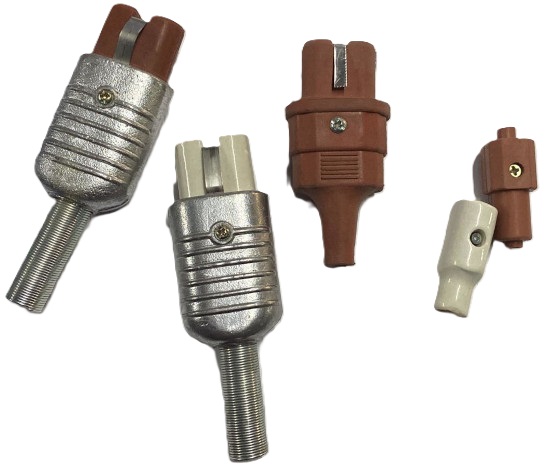

Bipolar and unipolar plugs

Bipolar aluminum-ceramic plug
Bipolar aluminum-silicone plug
Bipolar silicone plug
Bipolar silicone plug 90°
Unipolar ceramic plug
Unipolar silicone plug

Europlug three male flat pin

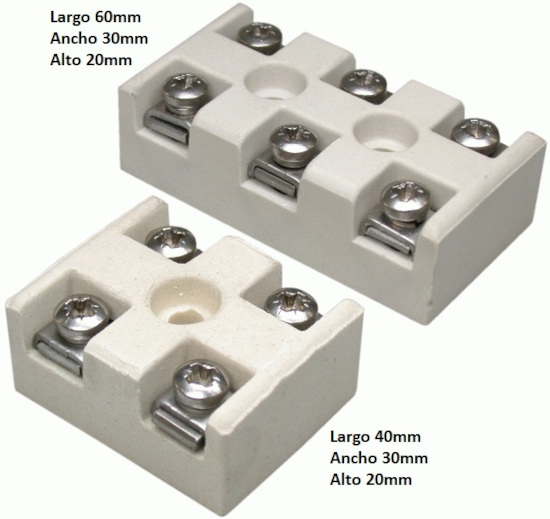

Ceramic block SUS

Steatite body with high strength
All stainless steel parts for the connection

40 Amper - 2 contacts - 40x30x20mm
40 Amper - 3 contacts - 60x30x20mm
40 Amper - 4 contacts - 80x30x20mm

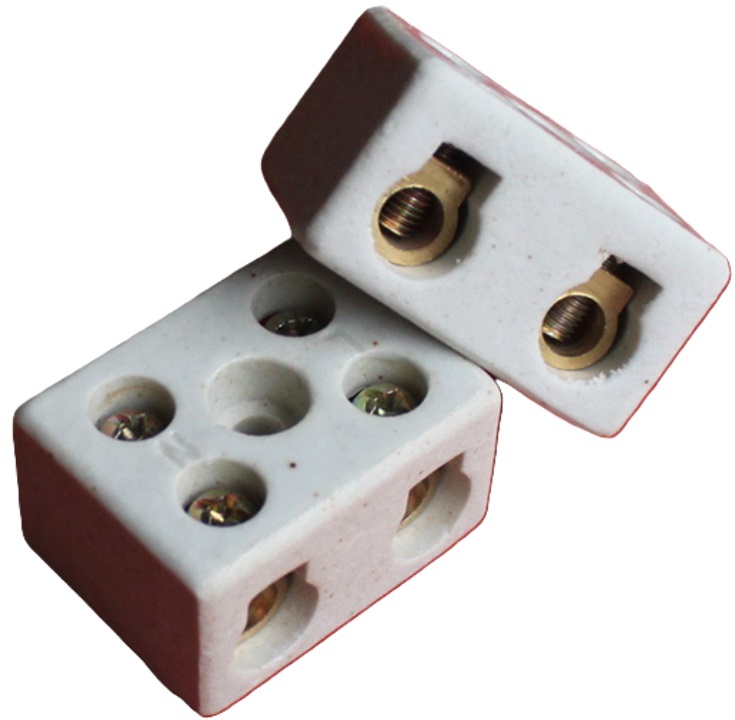

Ceramic block brass

Steatite body with brass contact

Bipolar 20mmx17mmx15mm - 25 A - cable 4mm
Bipolar 30mmx28mmx18mm - 40 A - cable 10mm
Tripolar 48mmx28mmx18mm - 40 A - cable 10mm

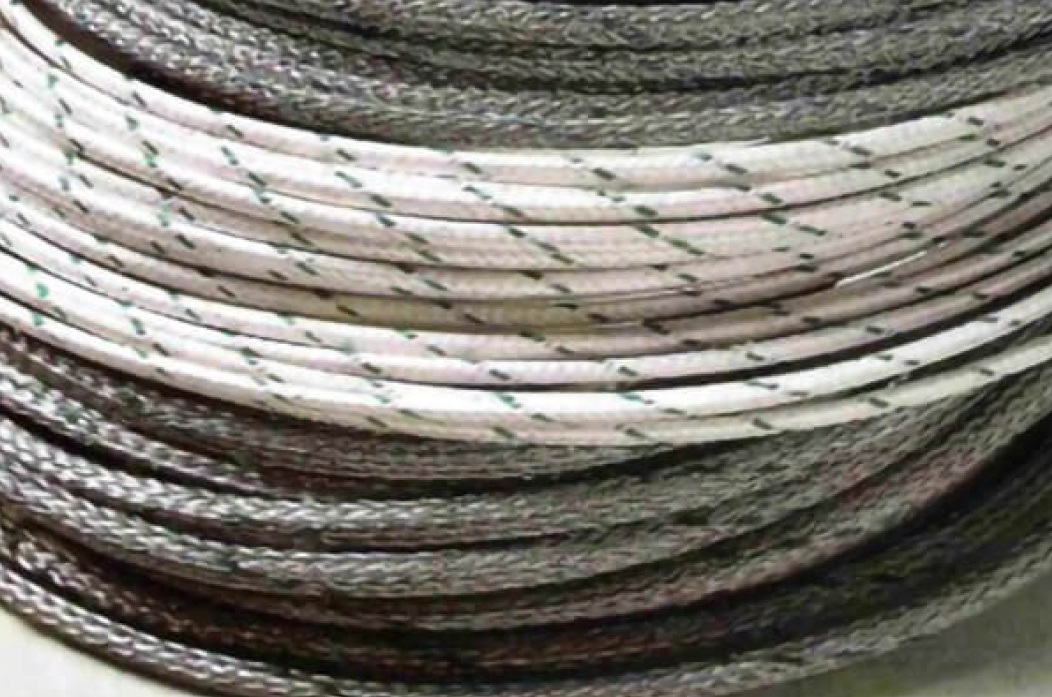

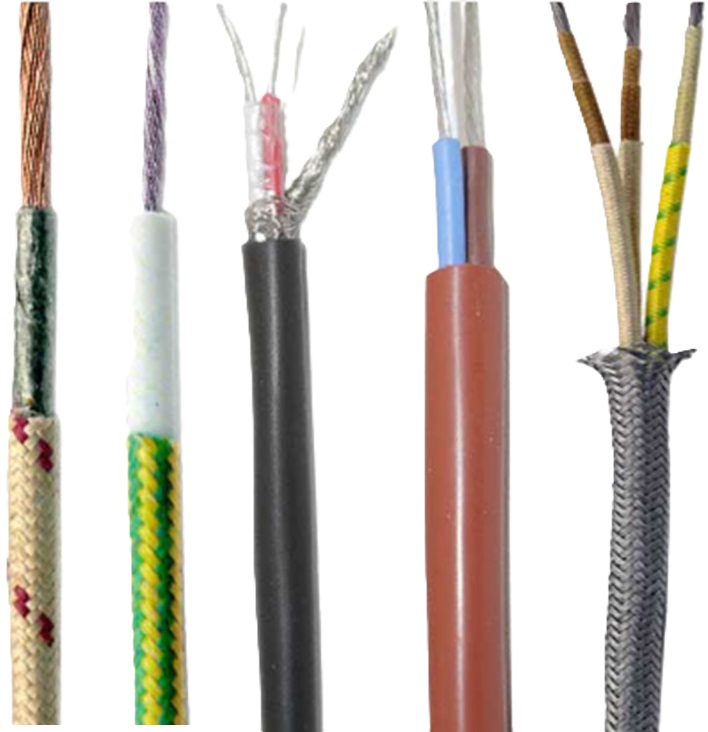

Cables for extreme conditions

High temperature insulated cables below 280°C
Copper double layer and triple layer Fiber glasss

High temperature cables 350°C
Nickel cable, fiberglass lapping and varnished fibreglass braid

Very high temperature cables 450°C UL5107
Nickel cable, mica tape, mineral fiber and triple fibreglass varnished reinforced braid

Copper silicone insulated

Optional stainless steel overbraid

Termocouples compendated cables

J type and K type, insulated with varnished fibreglass Overbrraided stainless steel

J type and K type PVC insulated

J type and K type silicone rubber insulates

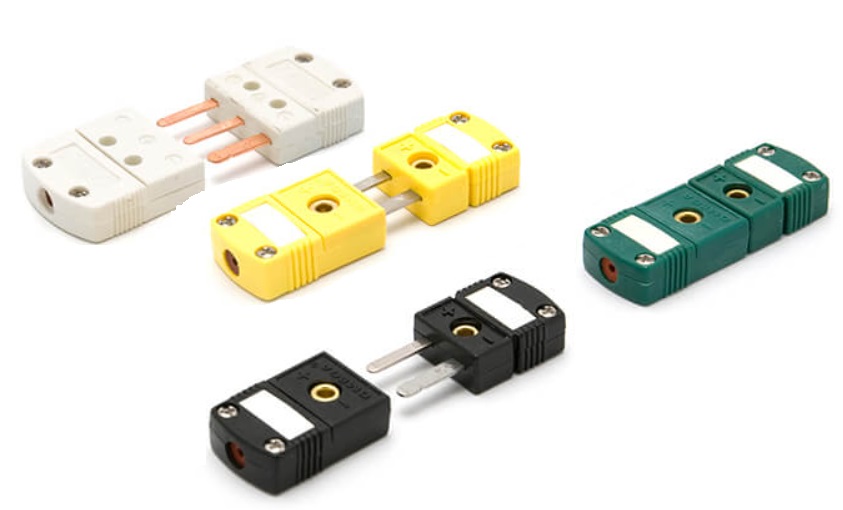

Compensated connectors

White color - PT-100 - 3 flat pins
Yellow color - K - round holow pin
Yellow color - K - mini flat pin
Black color - J - round hollow pin
Black color - J - mini flat pin

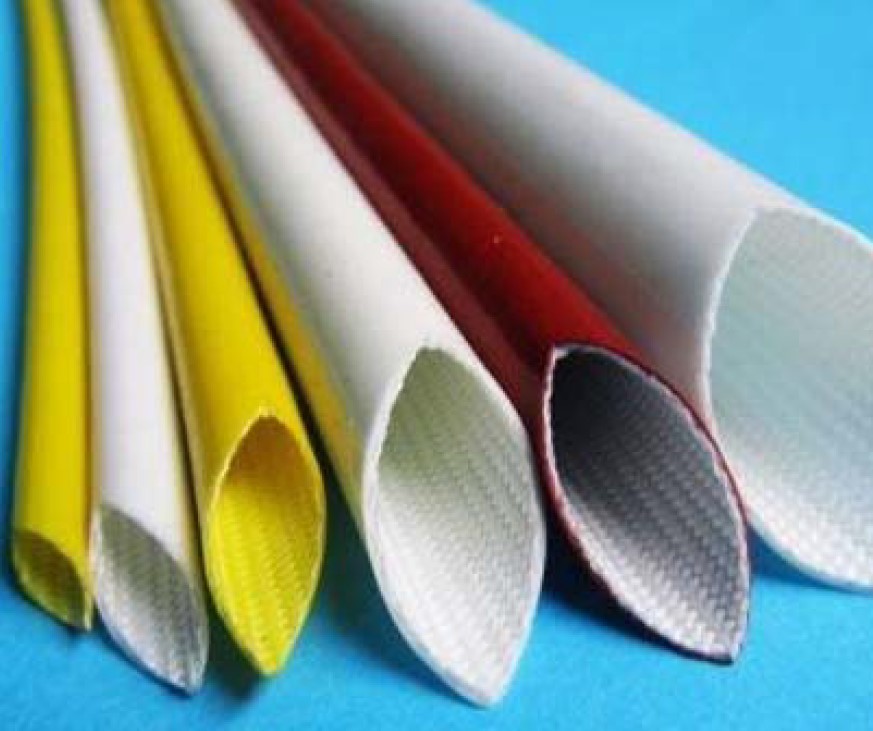

Fibreglass sleeves

Double braid fibreglass impregnated with silicon varnish

Dielectric strength 7 Kvolt

Temperature range -60°C to +200°C

Flame retardant UL 224 VW-1
