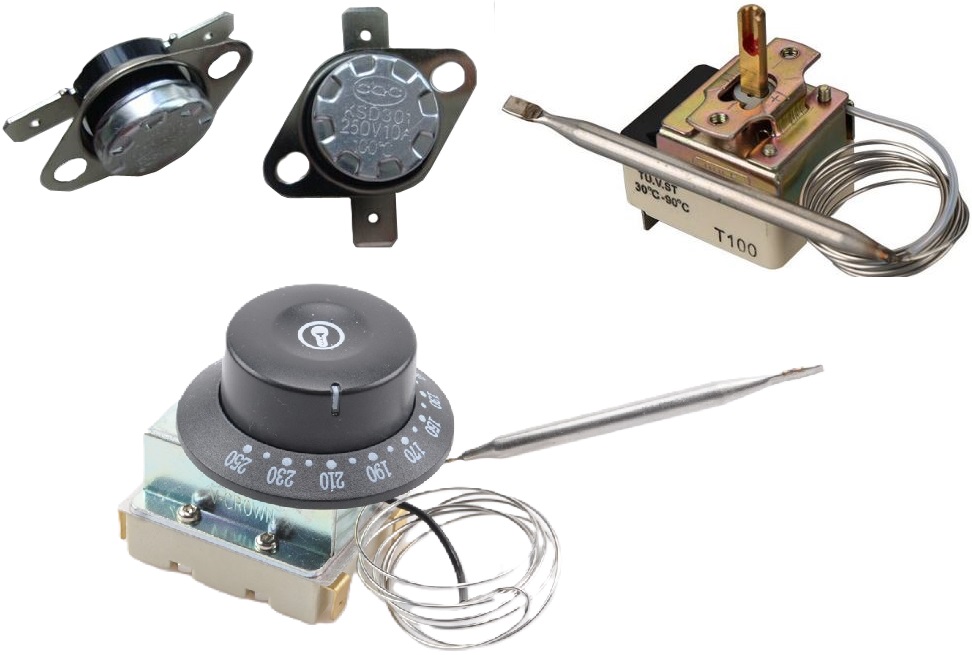

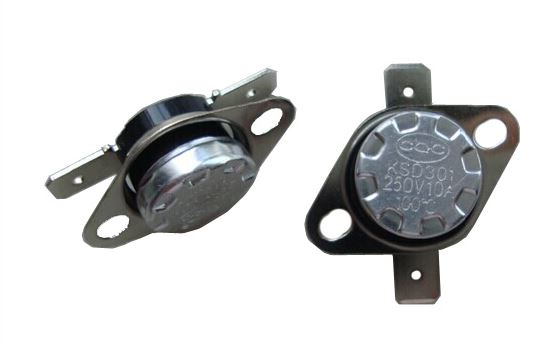

KSD-301 thermostat

1. Electric Rating: 10A - 250V
Temperature Range: 15°C to 280°C (For auto reset)
Type of Mounting Bracket Loose type
General Direction of Terminal： Horizontal other at request
Material of Bimetal Thermostat’s Base：Bakelite

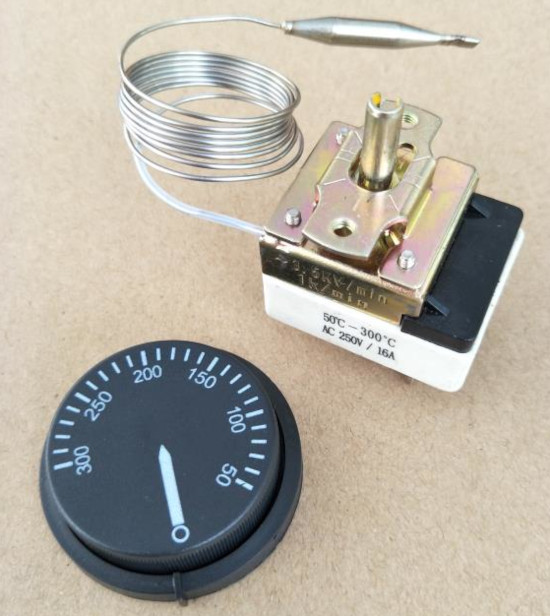

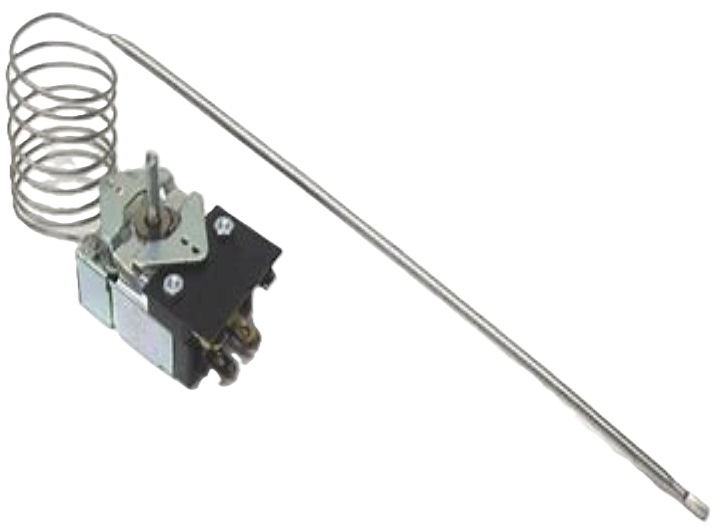

Capillary thermostat

Temperature range: - 35~+320℃
Current voltage: 16A / 250V
Service life:≥100,000 times 5
Temperature response rate:≤1.0℃/min
Minimum current: 200 mA
Size of Mounting Hole: 2-M4
Min. Capillary Bend Radius: 5mm
Length of Capillary: 800mm other are optional at request
Temperature Differential: 15% of Action Temperature
Material of Capillary and Sensing Bulb: Stainless Steel
Application: Oven, deep fryer and so forth.

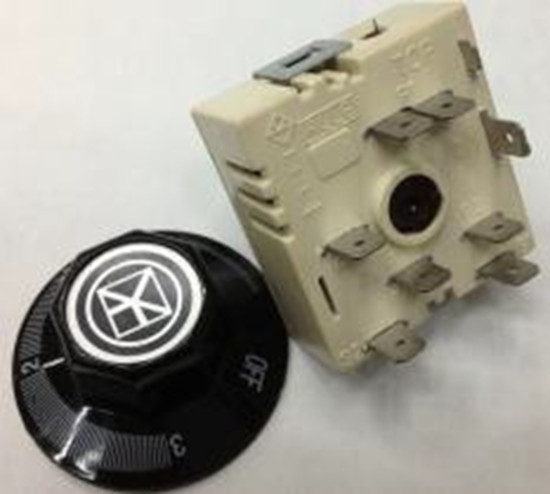

Energy regulator

Main features: Energy regulators are used to adjust power on electrical heaters Connected in line with electrical heaters, they provide adjustable cycling sequence, thus adjusting average electrical power
Housing dimensions: 50*42*39mm(shaft not included)
Housing material: high temperature resistant PPS
Terminals:6.3*0.8 quick connect

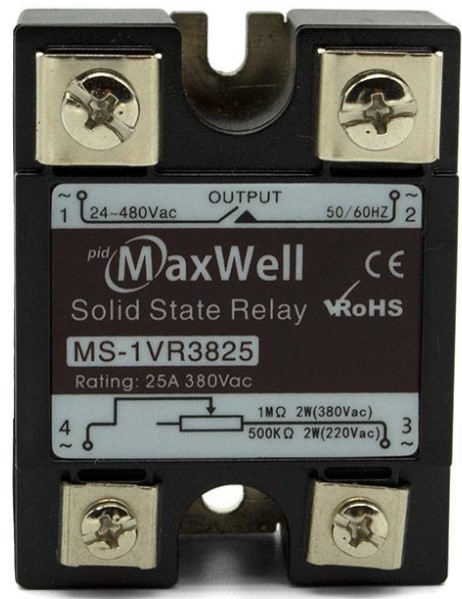

Solid Star power regulator

The MS-1VR is a voltaje & power regulator
through a potentiometer could deliver continuously regulated voltaje between 24Vac and line main voltage
Avaiable from 10 Amper to 100 Amper
One phase or three phace regulator
