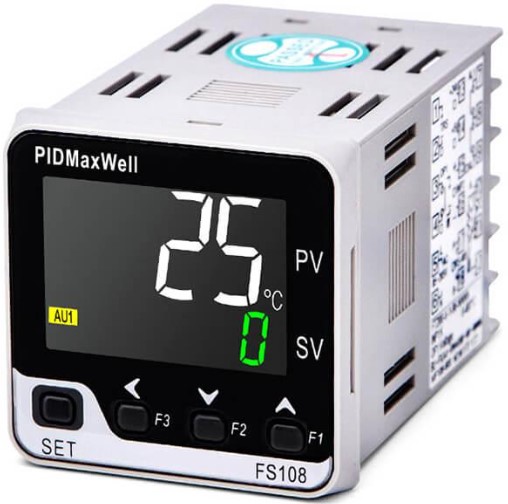

FS series LCD PID controller

FS08 series controller is LCD display digital PID controller, vivid LCD display for easy to read from distance
True universal input, works with TC/RTD and analog input
Relay and SSR Drive output field selectable makes it suitable for most of industrial application
Different size, 48x48mm, 72x72mm, 96x96mm, 48x96mm
Lot of add-on features like auto/manual control switch, parameter resets to factory default, RS-485 optional, customized parameter layout, makes this a competitive cost-effective PID controllers on the markets

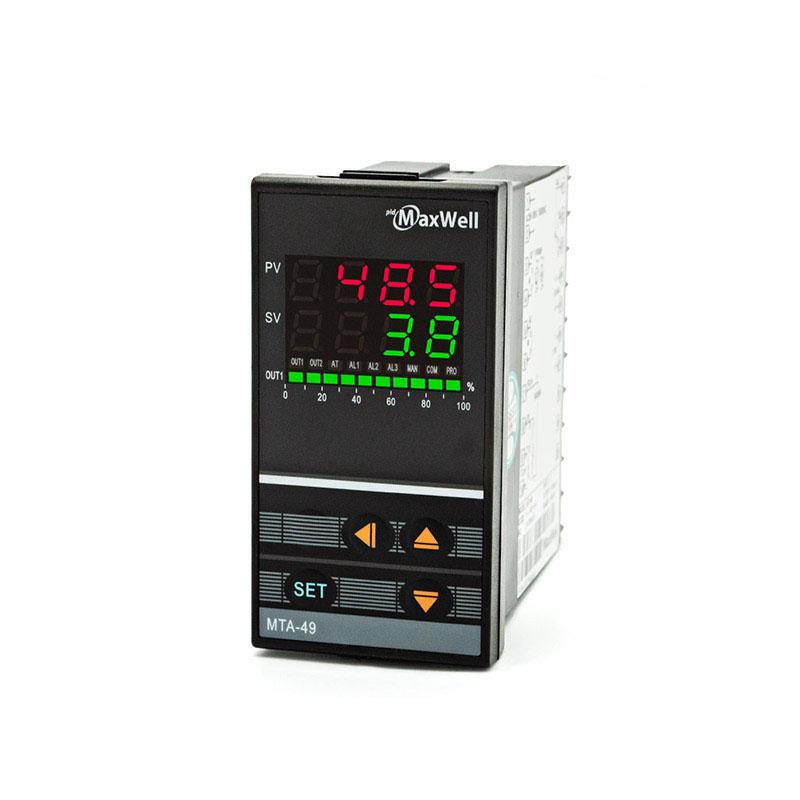

MTA series high precision controllers

MTA series PID temperature controller is a programmable pid temperature controller offers solutions for most of application
This controller works with Thermocouple, RTD(PT100) and Analog signal like 0-10VDC, 4-20mA etc
It's a true universal input controller which works with all inputs
Relay, SSR Drive output and analog outputs are optional upon order
Add-on features like RS-485 and Process re-transmission is avaiable on request.
Compatible with wide range of power source from 85~265Vac

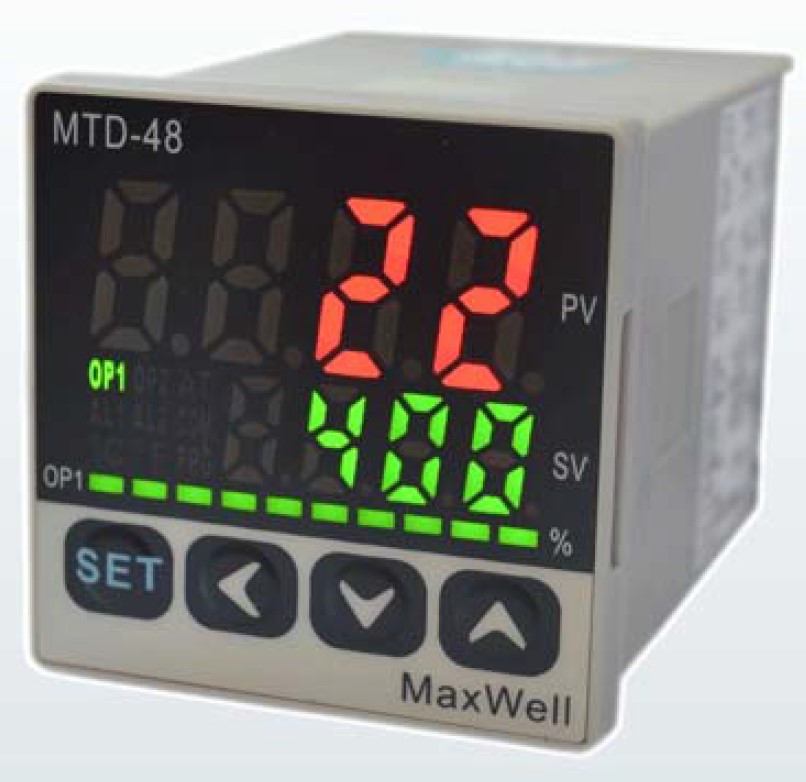

MTD series relay + SSR

MTD series PID temperature controller is a cost effective pid controller offers basic features that will suit a lot of basic temperature control needs
Works with TC/RTD inputs, and equipped with Relay and SSR drive output at the same time, the output is field selectable
If the actuator is a conventional relay or AC contractor, then choose the relay output, if the system has a solid state relay, then choose the SSR drive output
Maximum 2 alarms, working on wide power source from 85~265VAC or 24VDC.
RS-485 modbus is avaiable on request.

FT 601/602 series

FT100-601/602 is a process indicator which accepts thermocouple, RTD and analog signals.
The standard version works with TC/RTD inputs, and specify the analog inputs if the input is analog like 0-10VDC, 4-20mA etc.
The display can be either in Celcius or Fahrenheit, Maximum 3 alarms can be selected for large sizes
24VDC auxiliary power supply is possible to power transduers like presure transmitters, process value can also be re-transmitted to feed to PLC or paperless recorders, RS-485 modbus communication available to be abled to connected with PLC and HMI

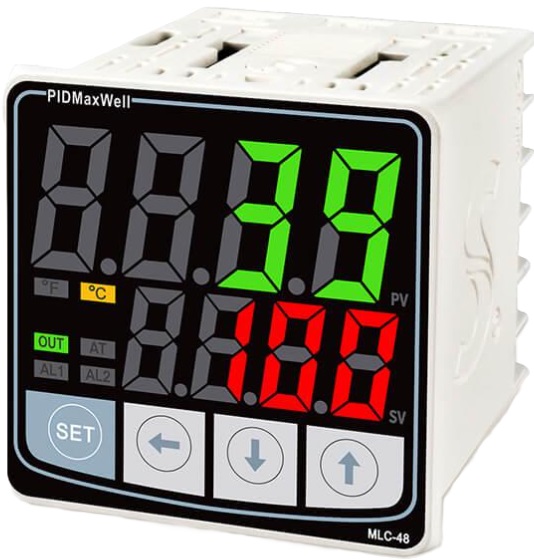

MLC series

MLC series PID temperature controller is a low cost robust pid controller offers basic features that will suit a lot of basic temperature control needs
Works with thermocouple(K,E,J,N,T,S,R,B) and RTD(PT100,Cu50) inputs
Controller comes with Relay and SSR Drive output at the same time, you can select the output based on the field application
Maximum 2 alarms
Works with main source 85~265Vac or 24VDC.
The housing is made of fire resistance material and front panel with soft setting buttons

FT 610 PID controller with timer

FTX00-610,PID temperature controller with built-in timer
Works with thermocuple and RTD inputs
Relay output for timer
It's ability to maintain the tempearture at preset time duration is the key features of this item
When temperature reach to SV, the timer will be triggered automatically and starts to counting, when the time duration elapsed, a relay will pull-in and generate a dry contact signal.
RS-485 modbus communication is optional
24VDC/AC souce is optional as well.

FT-625 series with Soft-Start

FT series PID temperature controller is similar to other controllers we have but offers more options items
Works with thermocouple and RTD inputs
Comes with Relay, SSR Drive, or 4-20mA, 0-10VDC output, Maximum 2 alarms avaiablel, standard version works on 85~265Vac, and 24VDC/AC source optional when order
Apart from these standard features, this controller also has some unique features like soft-start for analog output which is pretty useful for some of application where the load needs to be protected from drastic increase power load like in hot-runner systems
Process value re-transmission and remote setting point available at request, RS-485 modbus communication which makes this controller has the ability to handle different situations.

CP48T series
Independent timer & temperature

Maxwell CP48T,CP72T,CP96T,CP49T is a 2 in1 temperature controller with timer.
Time and temperature are two variables that often involved in a heating relateble applications
Typical application such as heat press printing, food and beverage process
The timer and controller are two devices and built-in one

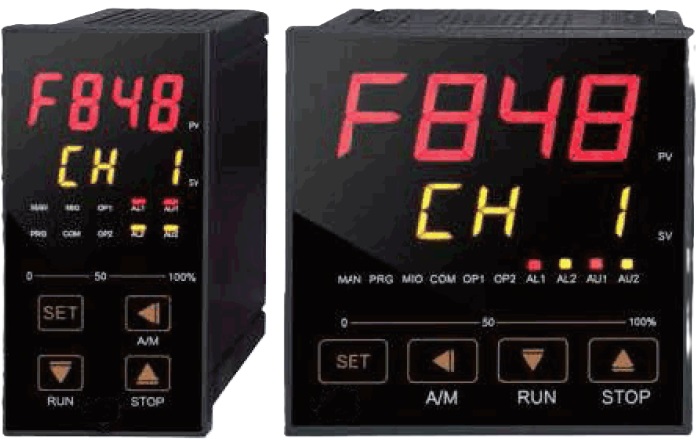

F848 multi channel controller
2 or 4 channels in one cabinet

Up to 4 independent input and 4 output in only one cabinet
High accuracy 0.2% with resolution 0.01°C
Relay output or optional SSR
Totally sealed with two gasket for IP65 protection
LED Display
2 or 4 contrllers in the same 48x96 or 96x96 case

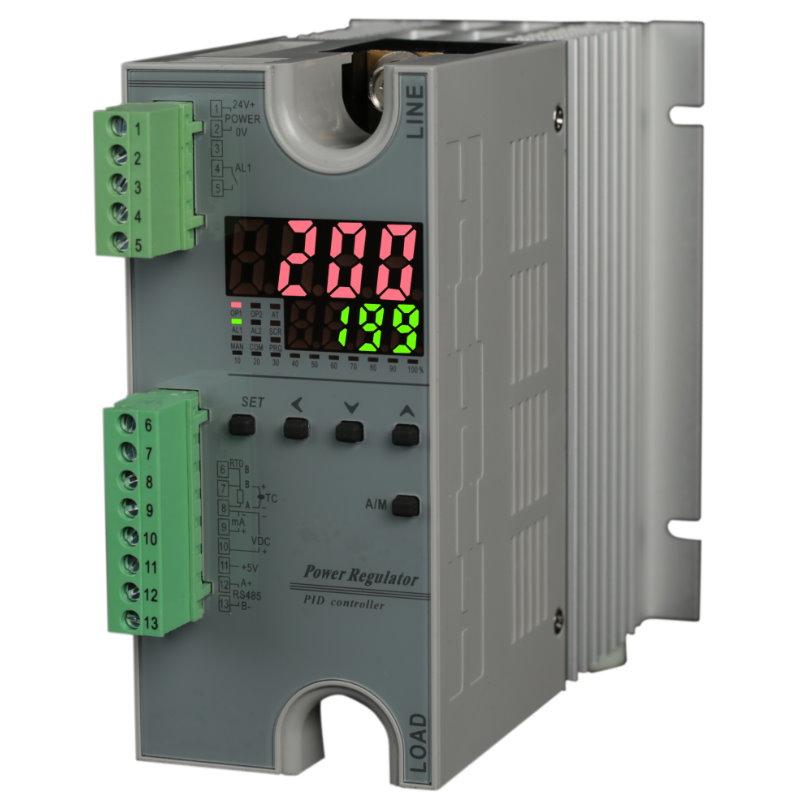

KDF-100 SCR power and temperature controller

This is a single phase SCR power regulators and temperature controllers 2 in 1 units
In a typical heating system, you would need a temperature controller and a SCR power regulators, and they are two separate devices, we go further and build this two devices in one package, this saves a lot of efforts for panel builders when it comes down to wiring
RS-485 modbus is a standard feature, controller can be integrated to systems with HMI or PLC etc.
The load can be directed wired to this thyristor power regulators, and it works with all kinds of inputs, Thermocuple, RTD, analog signal

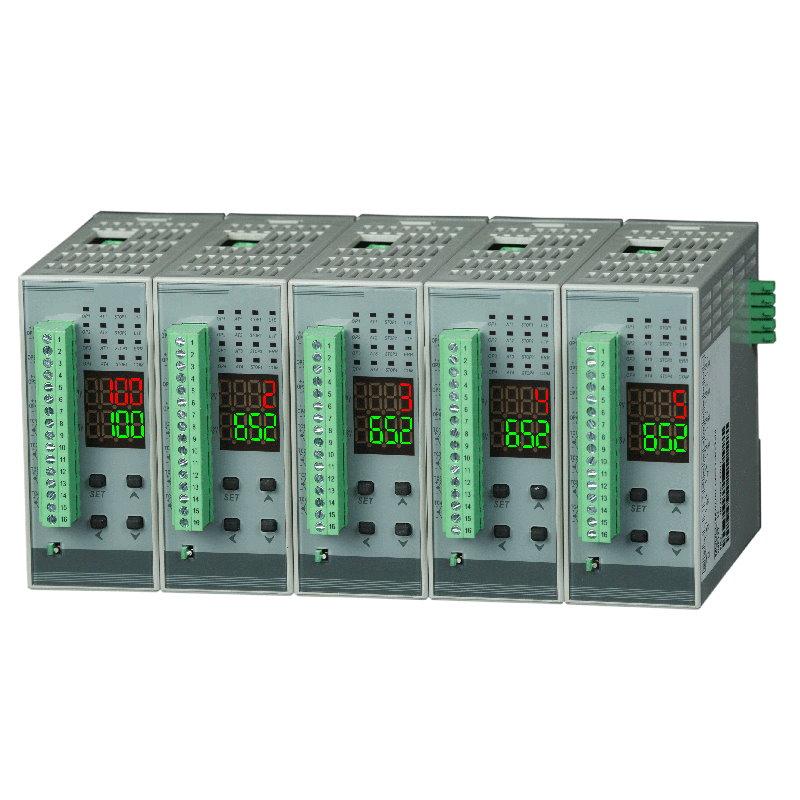

DR04D 4 channel 4 output

Maxwell DR04D is a din rail mount PID temperature controller
4 channel configuraitons
Support thermocouple inputs(K,E,J,N,W,S,T,R,B)
Output can be Relay, SSR Drive, or analog like 4-20mA, 0-10VDC, PID or ON/OFF control mode
RS-485 modbus communication as standard features, 24VDC source for greater saftey
Auto/manual control switchable, when you have a sensor failure, the system can be quickly switched to manual control mode to maintain the temperature
Soft-start and run/stop features.
Up tp 15 units to control 60 channel through PLC or HMI, with SSR drive is the rigth choose for hot-runner systems

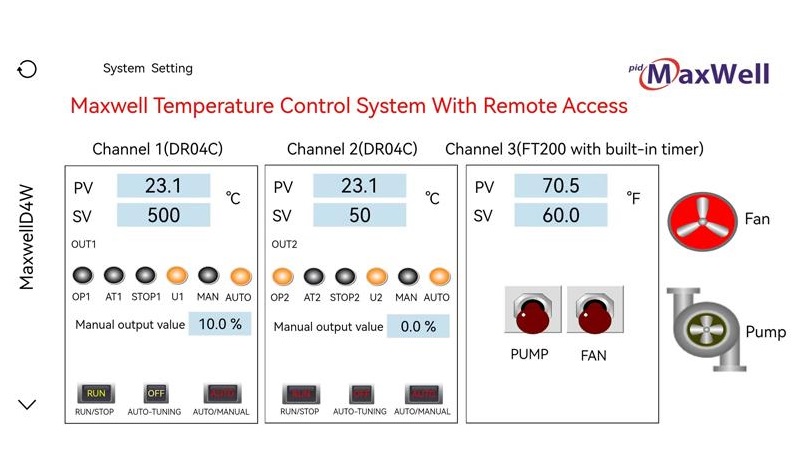

RA-Maxwell-01 Remote Access Temperature Control System

IoT is getting more and more popular, to keep up with the trend, for some of temperature control system with PLC in it, we offer an alternative solution by using our DIN rail temperature controller plus our IoT box, or IoT HMI, the concept is implementing DIN rail temperature controller system and connect it with IoT HMI plus various I/O modulars, so that the PLC can be eliminated from the system
